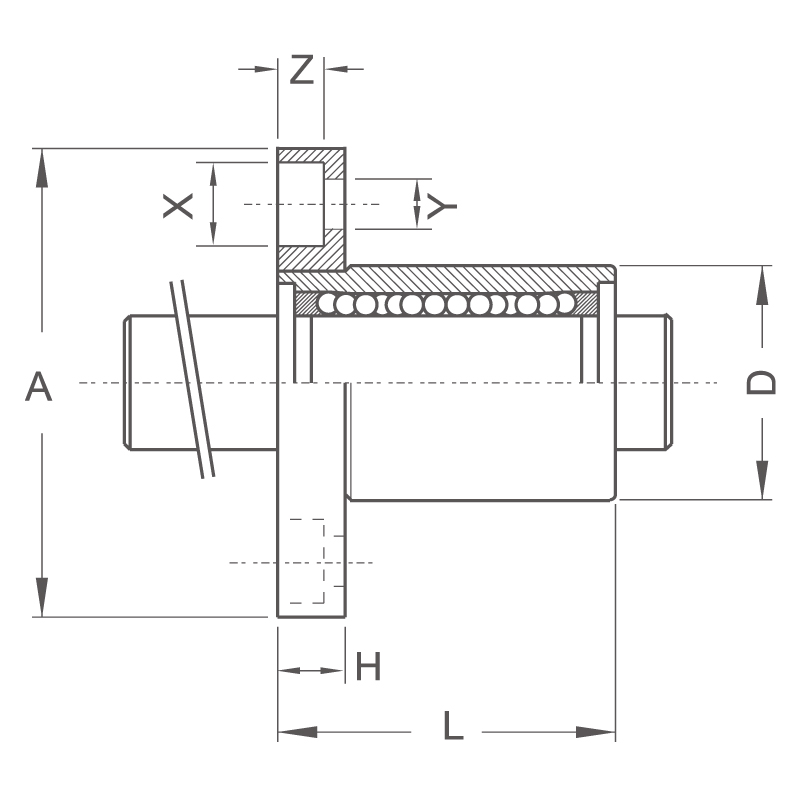

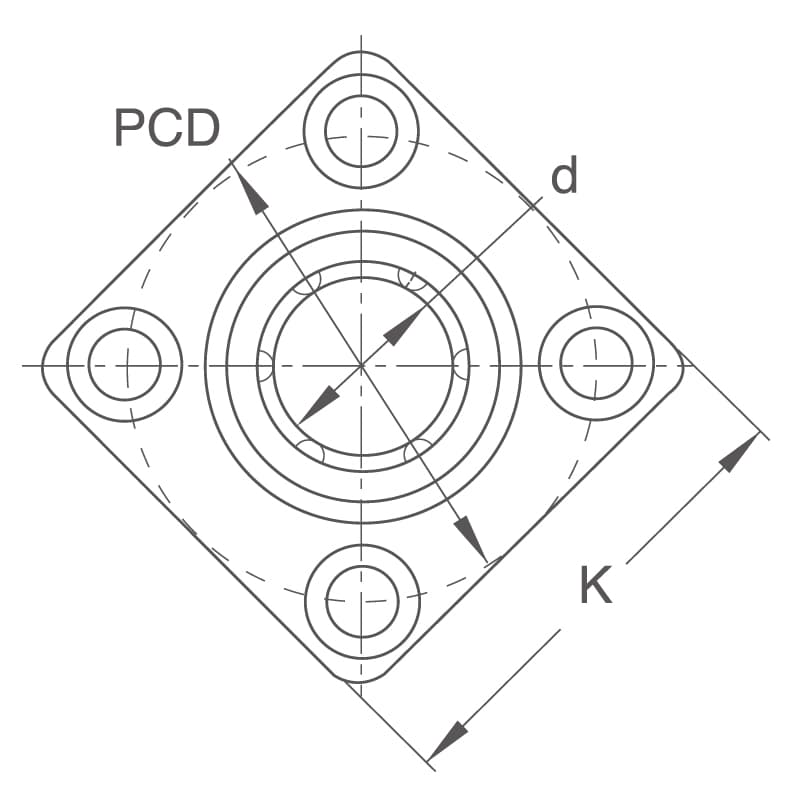

Dimensions

Unit: mm

Model No.	d	D	Tolerance	L	Tolerance	K	A	X	Y	Z	h	PCD	Ca (kgf)	Coa (kgf)	Weight (g)
LMK6UU	6	12	0~0.011	19	0~-0.2	22	28	3.5	6	3.1	5	20	21	27	24
LMF6UU	6	12		19		-	28	3.5	6	3.1	5	20	21	27	24
LMK8UU	8	15		24		25	32	3.5	6	3.1	5	24	28	40	37
LMF8UU	8	15		24		-	32	3.5	6	3.1	5	24	28	40	37
LMK10UU	10	19	0~0.013	29		30	40	4.5	7.5	4.1	6	29	38	56	72
LMF10UU	10	19		29		-	40	4.5	7.5	4.1	6	29	38	56	72
LMK12UU	12	21		30		32	42	4.5	7.5	4.1	6	32	52	61	76
LMF12UU	12	21		30		-	42	4.5	7.5	4.1	6	32	52	61	76
LMK13UU	13	23		32		34	43	4.5	7.5	4.1	6	33	52	80	88
LMF13UU	13	23		32		-	43	4.5	7.5	4.1	6	33	52	80	88
LMK16UU	16	28		37		37	48	4.5	7.5	4.1	6	38	79	120	120
LMF16UU	16	28		37		-	48	4.5	7.5	4.1	6	38	79	120	120
LMK20UU	20	32	0~0.019	42		42	54	5.5	9	5.1	8	43	90	140	180
LMF20UU	20	32		42		-	54	5.5	9	5.1	8	43	90	140	180
LMK25UU	25	40		59	0~-0.3	50	62	5.5	9	5.1	8	51	100	160	340
LMF25UU	25	40		59		-	62	5.5	9	5.1	8	51	100	160	340
LMK30UU	30	45		64		58	74	6.6	11	6.1	10	60	160	280	470
LMF30UU	30	45		64		-	74	6.6	11	6.1	10	60	160	280	470
LMK35UU	35	52		70		64	82	6.6	11	6.1	10	67	170	320	650
LMF35UU	35	52		70		-	82	6.6	11	6.1	10	67	170	320	650
LMK40UU	40	60	0~0.022	80		75	96	9	14	8.1	13	78	220	410	1060
LMF40UU	40	60		80		-	96	9	14	8.1	13	78	220	410	1060
LMK50UU	50	80		100		92	116	9	14	8.1	13	98	390	810	2200
LMF50UU	50	80		100		-	116	9	14	8.1	13	98	390	810	2200
LMK60UU	60	90		110		106	134	11	17	11.1	18	112	480	1020	3000
LMF60UU	60	90		110		-	134	11	17	11.1	18	112	480	1020	3000
