LM

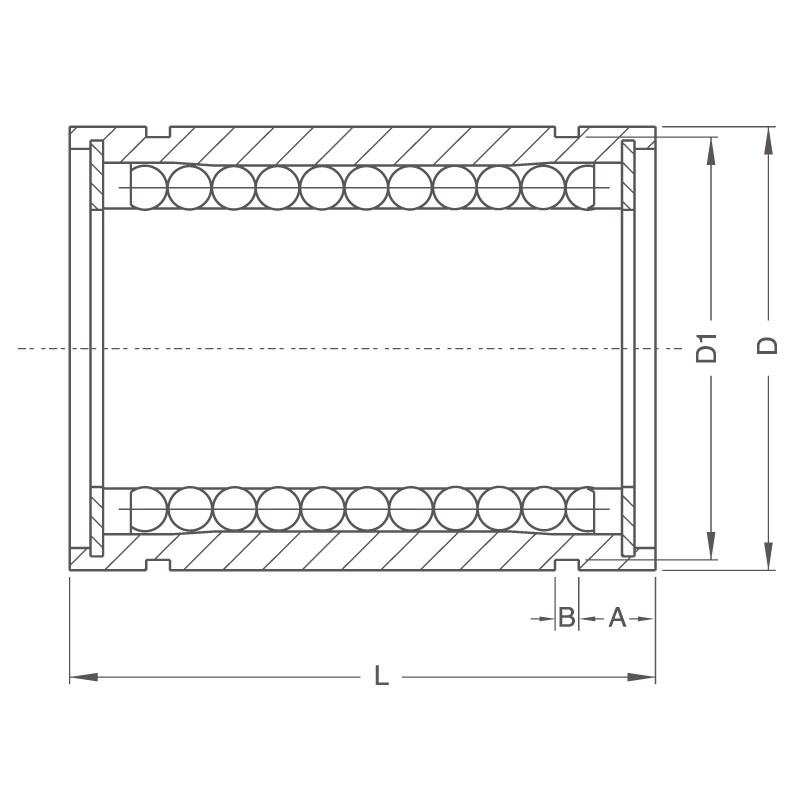

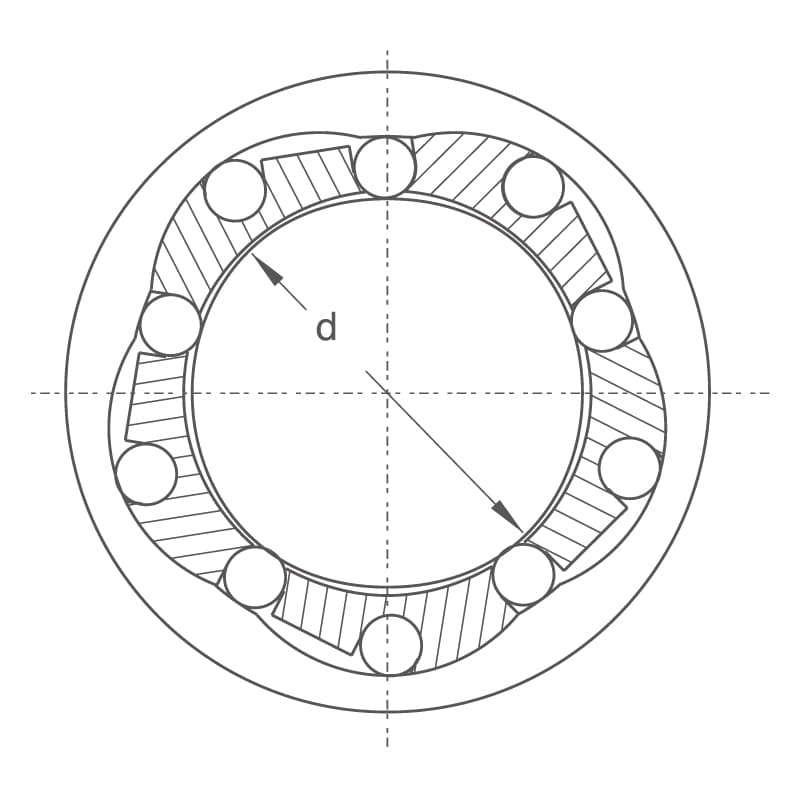

Dimensions

Unit: mm

Model No.	d	D	Tolerance	L	Tolerance	B	D1	Ca	Coa	Weight (g)
LM3UU	3	7	0~-0.009	10	0~-0.12	-	-	7	11	1.35
LM4UU	4	8		12	0~-0.12	-	-	9	13	2
LM5UU	5	10		15	0~-0.20	1.1	9.6	17	21	4
LM6UU	6	12	0~-0.011	19		1.1	11.5	21	27	8
LM8UU	8	15	0~-0.011	24		1.1	14.3	28	40	15
LM10UU	10	19	0~-0.013	29		1.3	18	38	56	30
LM12UU	12	21		30		1.3	20	42	61	32
LM16UU	16	28		37		1.6	27	79	120	69
LM20UU	20	32		42		1.6	30.5	90	140	87
LM25UU	25	40	0~-0.016	59		1.85	38	100	160	220
LM30UU	30	45	0~-0.016	64		1.85	43	160	280	250
LM40UU	40	60	0~-0.019	80	0~-0.30	2.1	57	220	410	580
LM50UU	50	80	0~-0.019	100		2.6	76.5	390	810	1580
LM60UU	60	90	0~-0.022	110		3.15	86.5	480	1020	1860
