SCE

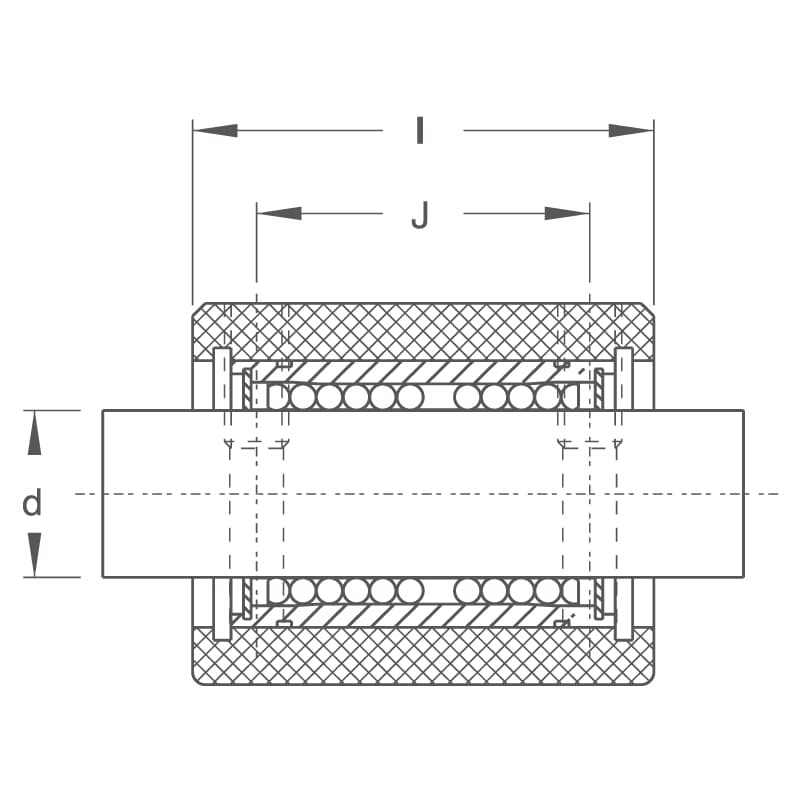

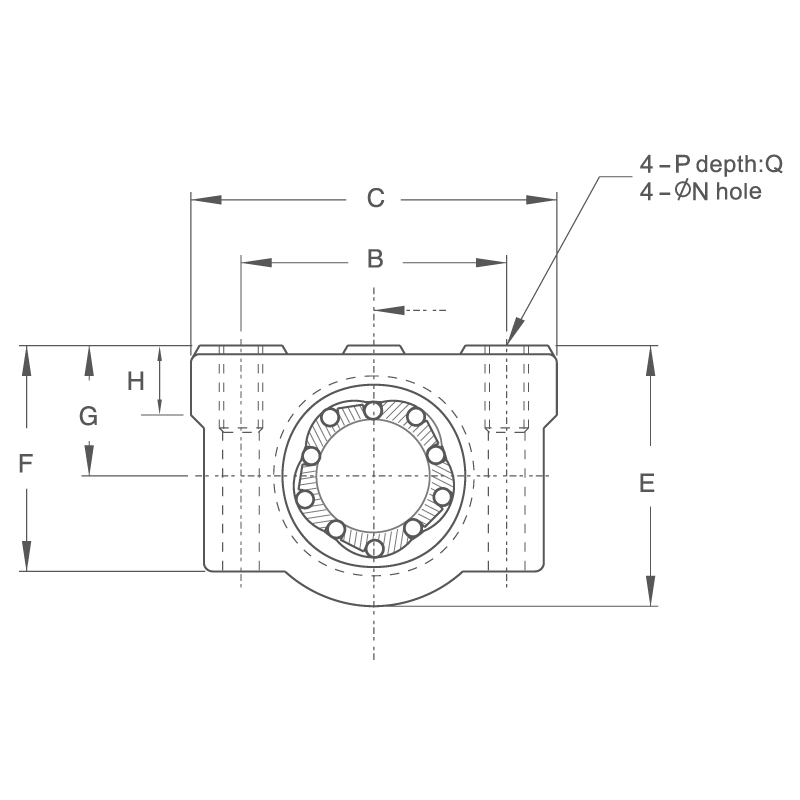

Dimensions
Unit: mm
| Model No. | d | B | C | E | F | G | H | I | J | N | P | Ca (kgf) | Coa (kgf) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCE8UU | 8 | 24 | 34 | 23 | 18 | 11 | 6 | 30 | 18 | 3.4 | M4 | 26 | 40 | 60 |
| SCE12UU | 12 | 33 | 44 | 30 | 24 | 15 | 8 | 39 | 26 | 4.3 | M5 | 41 | 59 | 118 |
| SCE16UU | 16 | 36 | 50 | 38.5 | 32.5 | 19 | 9 | 44 | 34 | 4.3 | M5 | 77 | 117 | 180 |
| SCE20UU | 20 | 40 | 54 | 41 | 35 | 21 | 11 | 53 | 40 | 5.2 | M6 | 86 | 137 | 245 |
| SCE25UU | 25 | 54 | 76 | 51.5 | 41 | 26 | 12 | 67 | 50 | 7 | M8 | 98 | 156 | 550 |
| SCE30UU | 30 | 58 | 78 | 59.5 | 49 | 30 | 15 | 76 | 58 | 7 | M8 | 156 | 274 | 760 |
| SCE40UU | 40 | 80 | 102 | 78 | 62 | 40 | 20 | 90 | 60 | 8.7 | M10 | 215 | 401 | 1700 |
| SCE50UU | 50 | 100 | 122 | 102 | 80 | 52 | 24 | 110 | 80 | 8.7 | M10 | 382 | 793 | 2950 |
| SCE60UU | 60 | 108 | 132 | 114 | 94 | 58 | 30 | 137 | 100 | 10.7 | M12 | 470 | 980 | 5330 |
