SC

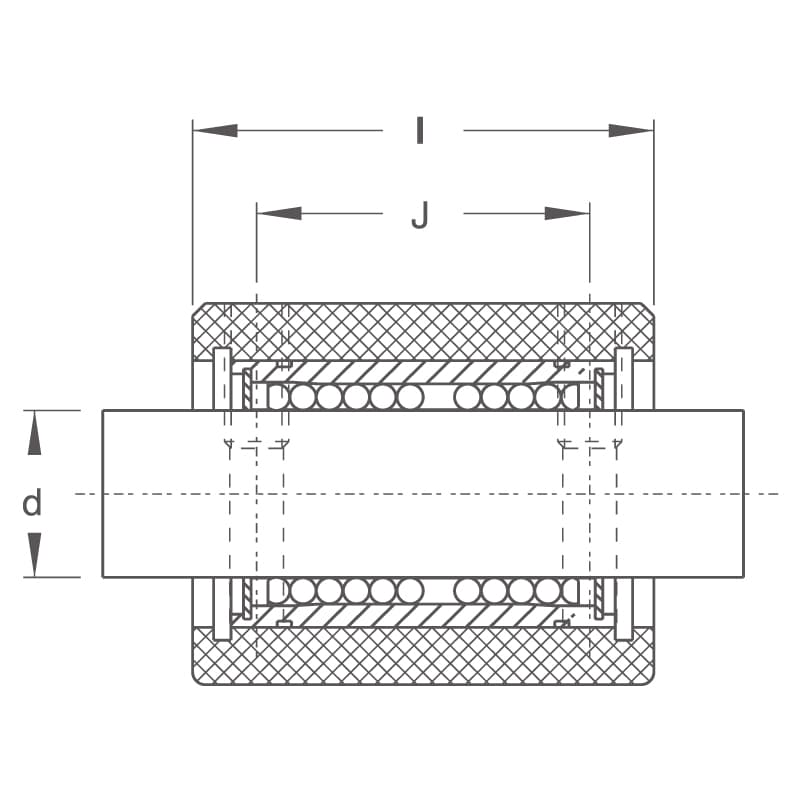

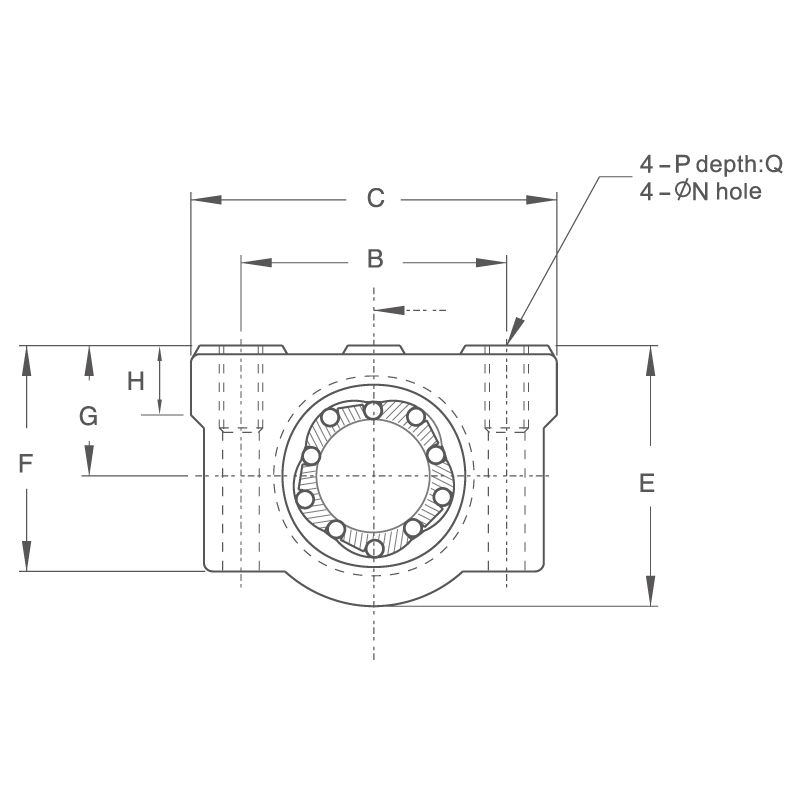

Dimensions
Unit: mm
| Model No. | d | B | C | E | F | G | H | I | J | N | P | Ca (kgf) | Coa (kgf) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC8UU | 8 | 24 | 34 | 22 | 18 | 11 | 6 | 30 | 18 | 3.4 | M4 | 28 | 40 | 52 |
| SC10UU | 10 | 28 | 40 | 26 | 21 | 13 | 8 | 35 | 21 | 4.3 | M5 | 38 | 56 | 92 |
| SC12UU | 12 | 30.5 | 42 | 28 | 24 | 15 | 8 | 36 | 26 | 4.3 | M5 | 52 | 80 | 102 |
| SC13UU | 13 | 33 | 44 | 30 | 24.5 | 15 | 8 | 39 | 26 | 4.3 | M5 | 52 | 80 | 120 |
| SC16UU | 16 | 36 | 50 | 38.5 | 32.5 | 19 | 9 | 44 | 34 | 4.3 | M5 | 79 | 120 | 200 |
| SC20UU | 20 | 40 | 54 | 41 | 35 | 21 | 11 | 50 | 40 | 5.2 | M6 | 90 | 140 | 255 |
| SC25UU | 25 | 54 | 76 | 51.5 | 42 | 26 | 12 | 67 | 50 | 7 | M8 | 100 | 160 | 600 |
| SC30UU | 30 | 58 | 78 | 59.5 | 49 | 30 | 15 | 72 | 58 | 7 | M8 | 160 | 280 | 735 |
| SC35UU | 35 | 70 | 90 | 68 | 54 | 34 | 18 | 80 | 60 | 7 | M8 | 170 | 320 | 1100 |
| SC40UU | 40 | 80 | 102 | 78 | 62 | 40 | 20 | 90 | 60 | 8.7 | M10 | 220 | 410 | 1590 |
| SC50UU | 50 | 100 | 122 | 102 | 80 | 52 | 25 | 110 | 80 | 8.7 | M10 | 390 | 810 | 3340 |
