FPA

Features
Engineered for tight spaces and high-efficiency maintenance. By integrating a square flange with an end-face lubrication port, it breaks through traditional mounting constraints—making it the premier choice for low-profile linear modules and precision stages.

Square Flange: Low-Profile, High Rigidity & Counterbored Design
- Space-Saving: Eliminates excess radial volume to minimize profile height, perfect for compact machine designs.
- Counterbored Bolting: The four mounting holes feature a counterbored design, allowing the screw heads to sit flush with the flange surface and preventing interference with surrounding components.
End-Face Lubrication: Zero Protrusion & Easy Access
- Compact Profile: The front-facing port allows the nut body to fit seamlessly into housing bores with zero radial protrusion.
- Fast Maintenance: Enables direct front-access lubrication without dismantling covers, significantly reducing downtime.

Diameter(mm): Ø12~ Ø20
Industries
Precision linear stages, semiconductor pick-and-place robots, medical automation devices, and space-constrained mechanisms.

INQUIRY

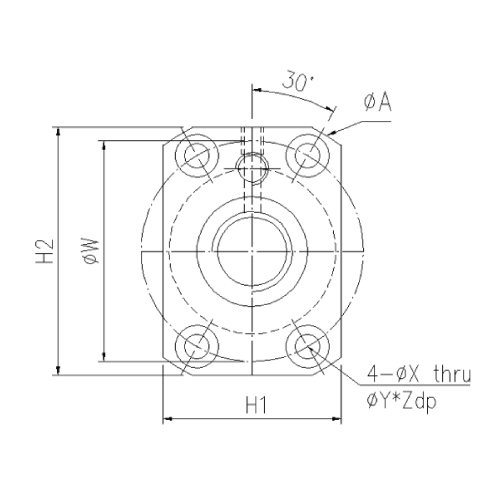

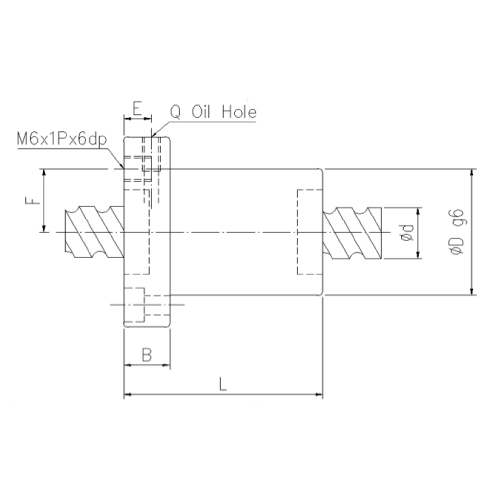

Dimensions
