FDI

Features

Internal Circulation Design-Compact Design: The circulation path is fully integrated within the nut body, eliminating external return tubes. This results in a smaller outer diameter and significantly reduces the required installation space.
Advantages of Counterbore Design-Space Saving: Screw heads are fully recessed within the flange, creating a flush surface that prevents interference or collisions with other machine components.

Double Nut Design

Zero Backlash The double nut preload structure completely eliminates axial play during direction changes, ensuring micron-level positioning accuracy.
High Rigidity The tight contact between steel balls and grooves significantly reduces elastic deformation under load, enhancing machining stability for the entire machine.

Diameter(mm): Ø16~ Ø80
Industries
Automation & Robotics, Machine Tool Industry, Semiconductor Industry, Electronics & AOI Equipment, Medical & Laboratory Devices, Energy & Automotive Industry

INQUIRY

Dimensions

★可生產左牙

Unit: mm

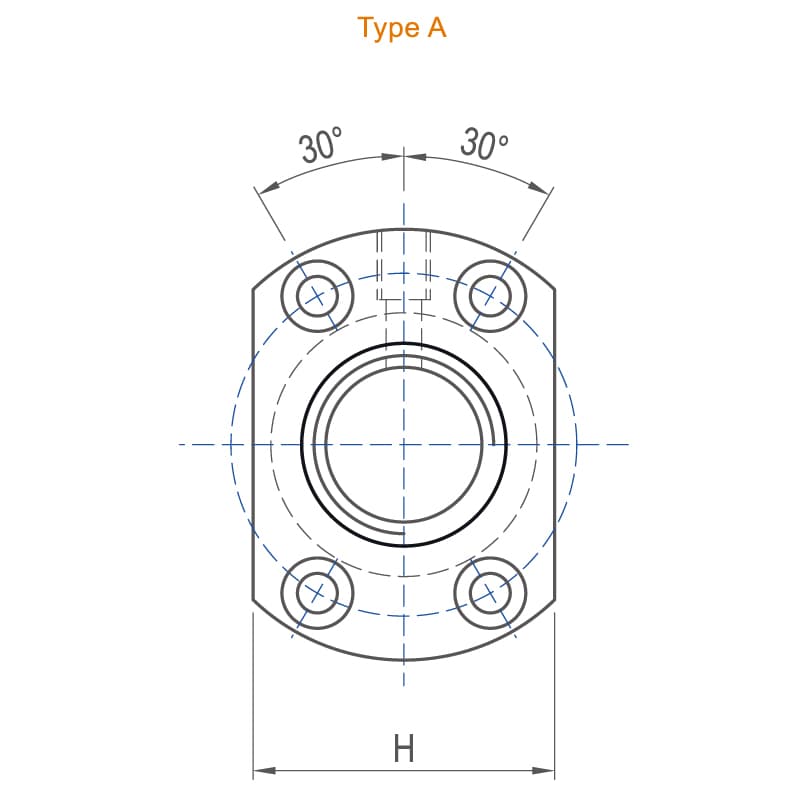

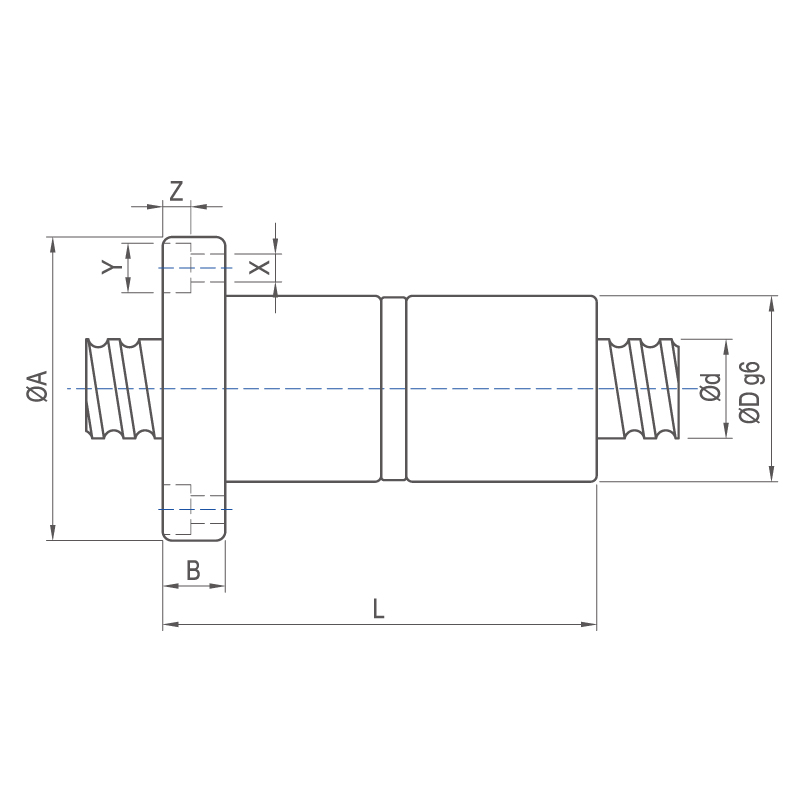

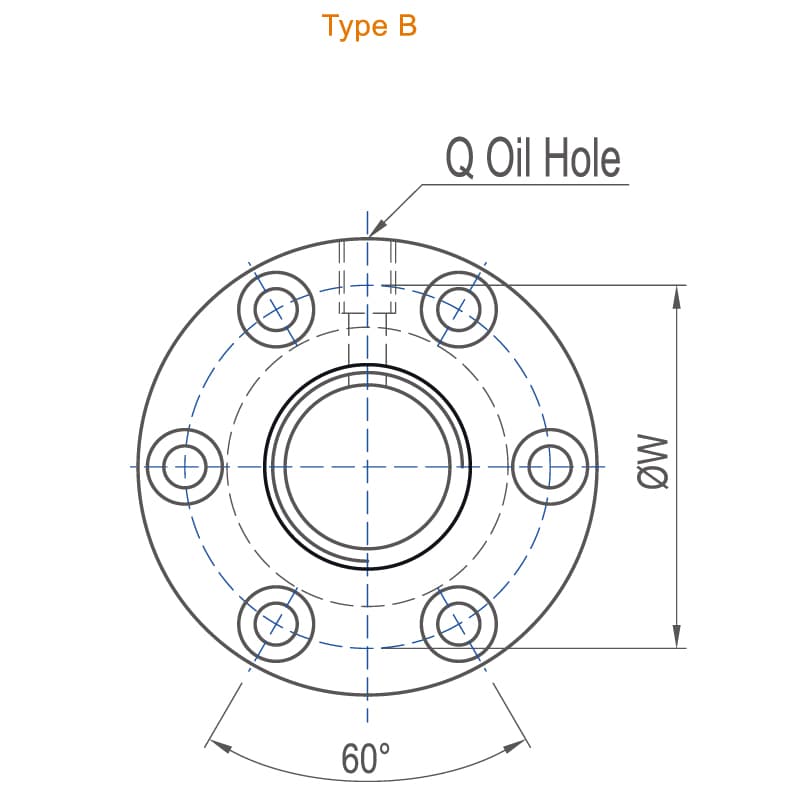

Model No.	d	I	Da	D	A	B	L	W	X	Y	Z	Type	H	Q	n	Ca (kgf)	Coa (kgf)
★ 1605-3	16	5	3.18	30	49	10	80	39	4.5	8	4.5	A/B	34	M6	T3	1063	1957
