RSH

Features
Engineered for the North American market and compact, heavy-duty mechanisms, this series perfectly integrates the high load capacity of external return tubes, the ultimate radial space-savings of external male threads, and imperial standard specifications. It stands as the premier choice for industrial electric cylinders and US-standard transmission equipment.

1. High-Efficiency External Tube Circulation | High Load & Durability
   Utilizing a classic external return tube design, this series accommodates larger-diameter steel balls to significantly boost dynamic load ratings and shock resistance. It is ideally suited for continuous, heavy-duty reciprocal thrust conditions.

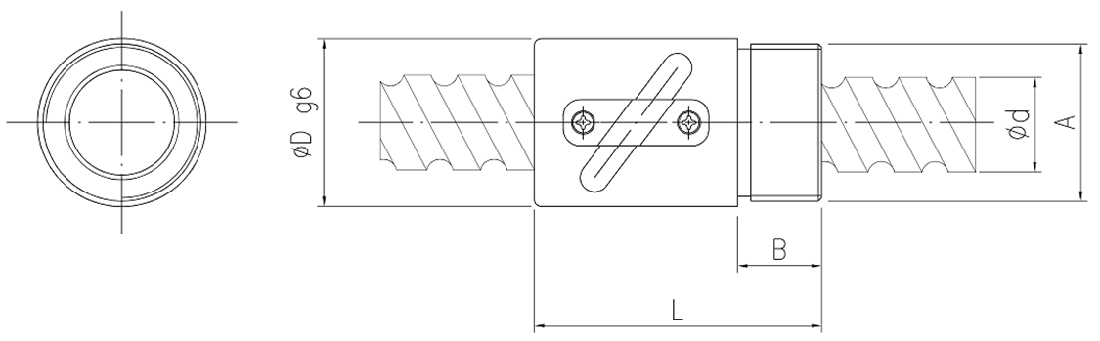

2. Threaded Cylindrical Body Design | Radial Downsizing & High Rigidity
   Completely eliminates the protruding volume of traditional flanges to compress radial installation space to the absolute minimum. The nut can be screwed directly into cylindrical mechanisms or housings, providing exceptional axial fastening rigidity.
3. Imperial Standard Compliance | Seamless Integration with US Equipment
   Dimensions, leads, and external threads strictly comply with American standards such as the Unified National Thread (UN/UNF). This allows direct, drop-in replacement of North American-manufactured machinery parts.

Diameter(mm): Ø12~ Ø16
Industries

• Industrial-Grade Electric Cylinders & Actuators
• US-Standard Machinery & Manufacturing Equipment
• Heavy-Duty, Compact Automation Mechanisms
