FSC

Features

Optimized Circulation Path Specially designed circulation components minimize the impact force as steel balls enter and exit the return path, significantly reducing collision noise at its source.
Noise-Absorbing Technology Select models feature specialized materials within the circulation system to absorb micro-vibrations and metallic friction noise generated during operation.

Diameter(mm): Ø12~ Ø63
Industries
Automation Equipment, Semiconductor Industry, Electronics & AOI Equipment, Medical & Healthcare Industry, Energy Industry

INQUIRY

Dimensions

★可生產左牙

Unit: mm

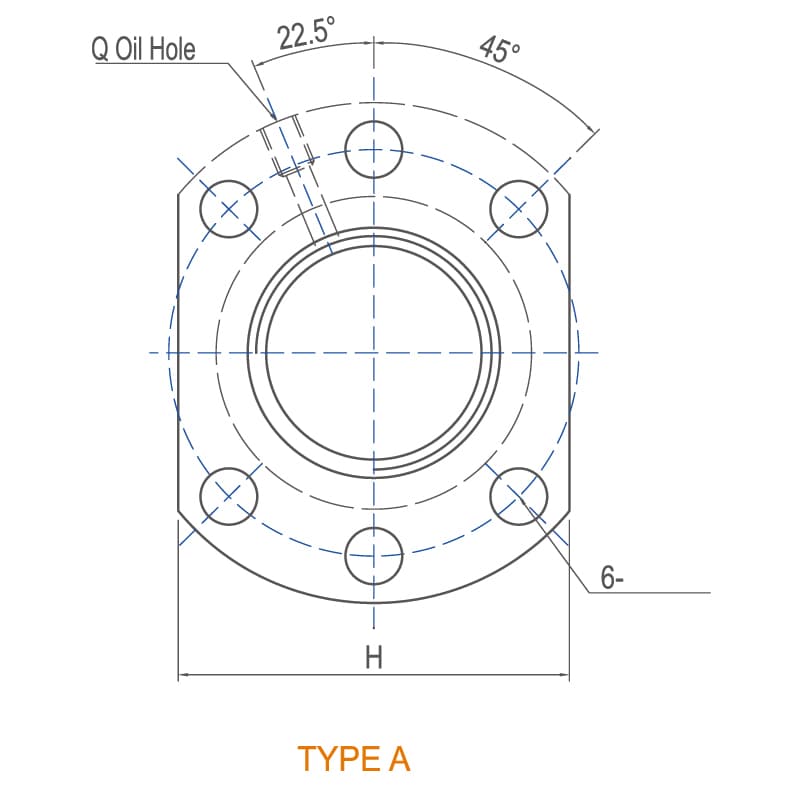

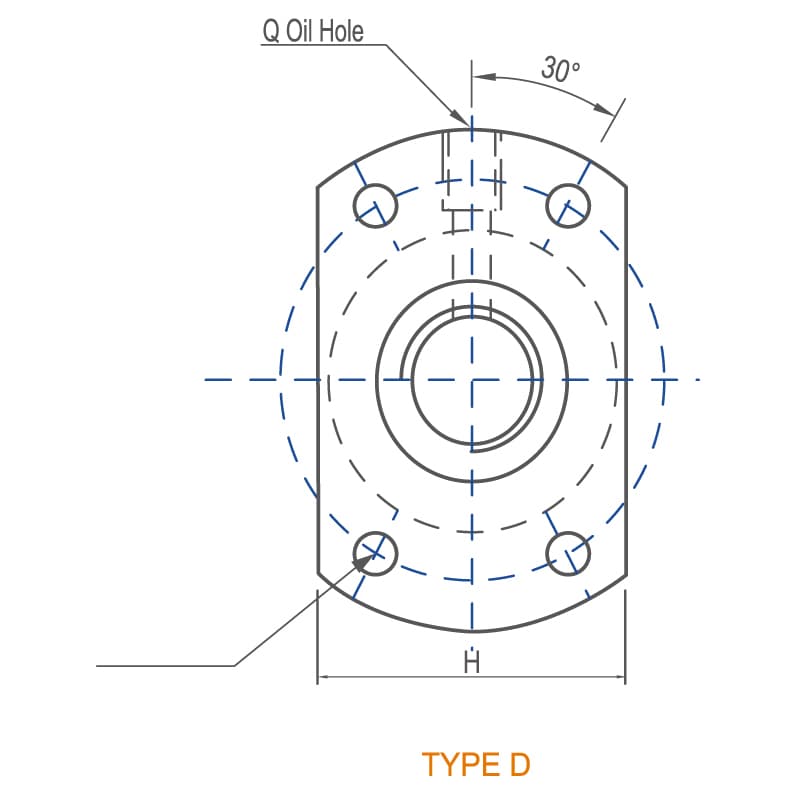

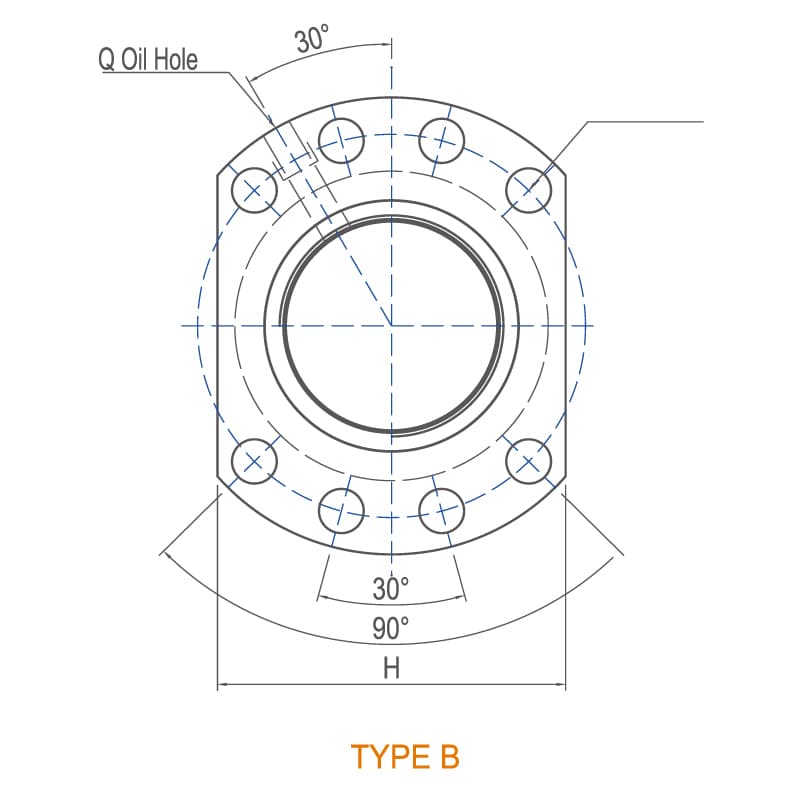

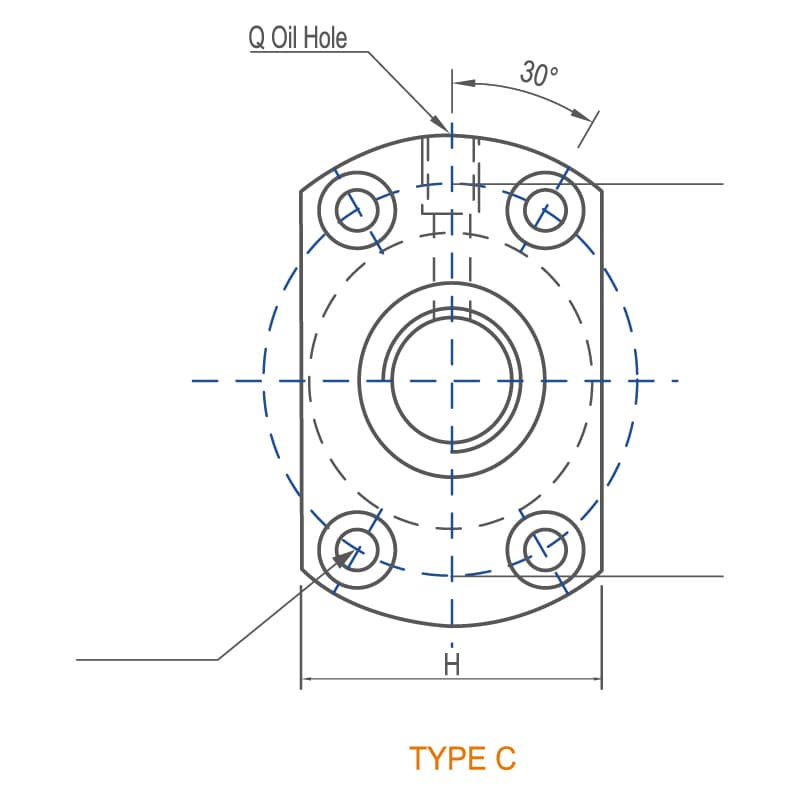

Model No.	d	I	Da	D	A	B	L	W	X	Y	Z	Type	H1	H2	Q	n	Ca (kgf)	Coa (kgf)
1205-2.8	12	5	2	24	40	8	30	32	3.6	-	-	E	25	35	-	B1	513	1051
1210-1.8	12	10	2	30	50	10	34	40	4.5	8	4.5	C	32	-	M6	A1	347	657
1520-1.8	15	20	3.175	34	55	12	57	45	6	-	-	D	34	-	M6	A1	729	1353
1610-2.8	16	10	3.175	28	48	12	43	38	5.5	-	-	A	40	-	M6	B1	1097	2245
1616-3.6	16	16	3.175	28	48	12	48	38	5.5	-	-	A	40	-	M6	A2	1361	2886
2010-2.8	20	10	3.969	36	58	10	48	47	6.6	-	-	A	44	-	M6	B1	1648	3554
2020-3.6	20	20	3.175	36	58	10	55	47	6.6	-	-	A	44	-	M6	A2	1497	3581
★ 2510-3.8	25	10	3.5	40	62	12	64	51	6.6	-	-	A	48	-	M6	C1	1978	5157
2510-3.8	25	10	3.5	40	62	12	64	51	6.6	-	-	A	48	-	M6	C1	1978	5157
2525-3.6	25	25	3.969	47	74	12	67	60	6.6	-	-	A	56	-	M6	A2	2236	5590
2525-1.8	25	25	3.969	40	62	12	65	51	6.6	-	-	A	48	-	M6	A1	1232	2795
3220-2.8	32	20	3.969	50	80	13	78	65	9	-	-	A	62	-	M6	B1	2013	5522
3232-3.6	32	32	4.762	56	86	16	82	71	9	-	-	A	65	-	M6	A2	3197	8612
3232-3.6	32	32	4.762	50	80	16	82	65	9	-	-	A	62	-	M6	A2	3197	8612
4020-2.8	40	20	5.556	63	93	15	83	78	9	-	-	B	70	-	M8	B1	3530	9793
4040-3.6	40	40	6.35	65	95	18	100	80	9	-	-	B	72	-	M8	A2	5225	14404
4040-3.6	40	40	6.35	63	93	18	100	78	9	-	-	B	70	-	M8	A2	5225	14404
5020-4.8	50	20	6.35	75	110	18	121	93	11	-	-	B	85	-	M8	D1	7401	23822
6310-5.8	63	10	6.35	90	135	20	98	108	13.5	-	-	B	100	-	M8	E1	9667	36485
