FDU
Features
- Interchangeability: Designed in strict accordance with the DIN 69051 standard. The standardized mounting holes and dimensions ensure seamless compatibility and high interchangeability across different brands.
- Space-Saving Design: The flatted flange design effectively reduces the mounting height, making it the ideal solution for compact automation equipment where space is at a premium.
- Superior Sealing: Equipped with high-performance wipers as a standard feature. These effectively block dust and contaminants while preventing lubricant leakage, ensuring a longer service life.
- Standardized Design Nut dimensions are engineered in strict accordance with the DIN 69051 German industrial standard, ensuring global compatibility.
- Zero Backlash: The double nut preload structure completely eliminates axial play during direction changes, ensuring micron-level positioning accuracy.
- High Rigidity: The tight contact between steel balls and grooves significantly reduces elastic deformation under load, enhancing machining stability for the entire machine.
Diameter(mm): Ø16~ Ø80
Industries
CNC Machine Tools , Large-scale Automation Systems
Dimensions
★可生產左牙

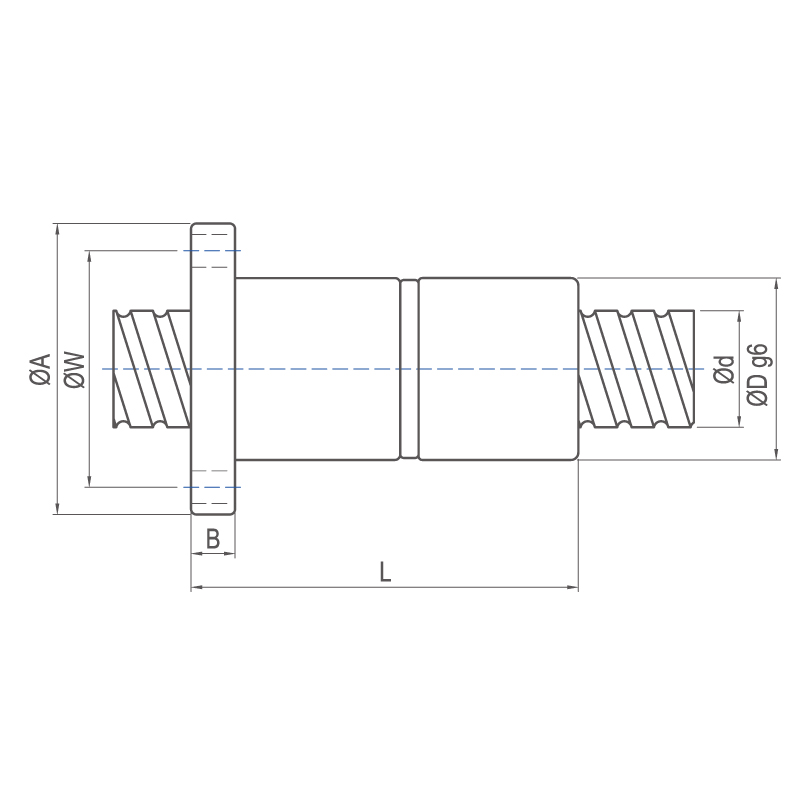

Unit: mm
|

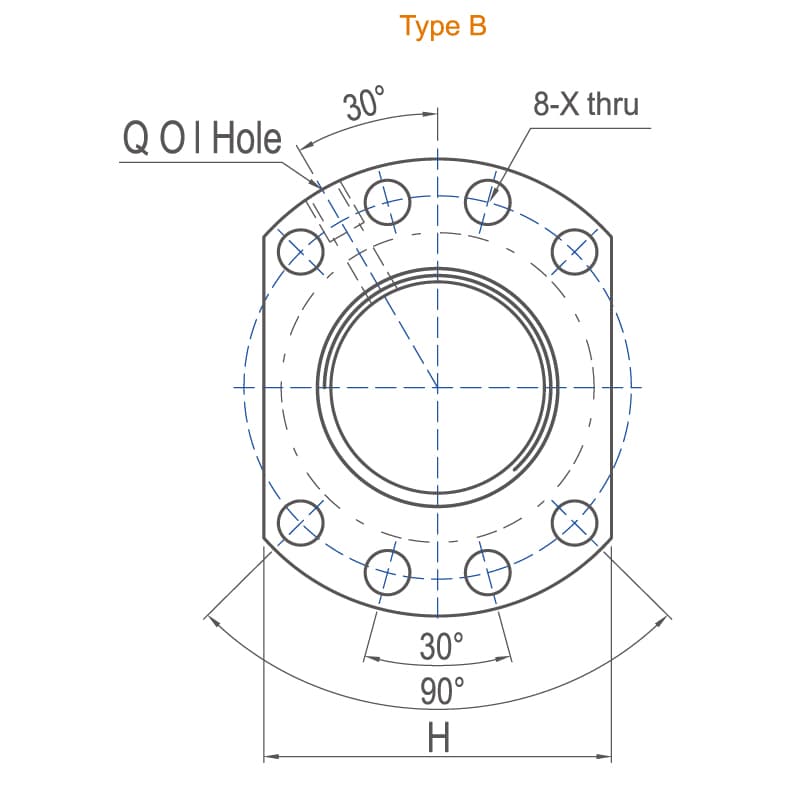

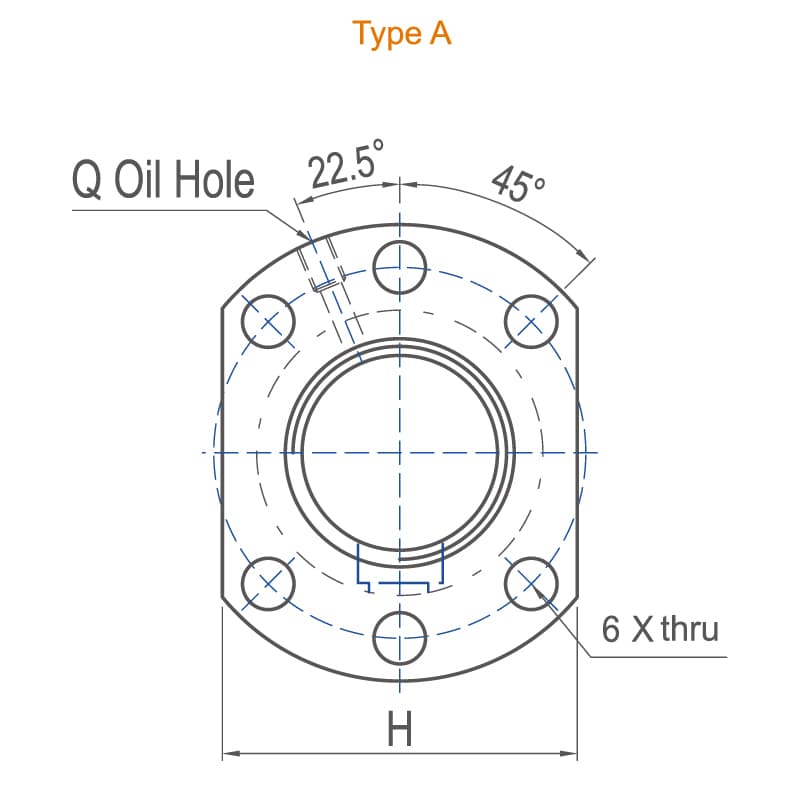

Model No.
|
d | I | Da | D | A | B | L | W | X | Type | H | Q | n | Ca (kgf) | Coa (kgf) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
★
1605-3
|
16 | 5 | 3.18 | 28 | 48 | 10 | 80 | 38 | 5.5 | A | 40 | M6 | T3 | 1063 | 1957 |
|
★
2005-4
|
20 | 5 | 3.18 | 36 | 58 | 12 | 92 | 47 | 6.6 | A | 44 | M6 | T4 | 1527 | 3390 |
|
★
2505-4
|
25 | 5 | 3.18 | 40 | 62 | 12 | 92 | 51 | 6.6 | A | 48 | M6 | T4 | 1716 | 4357 |
|
2510-4
|
25 | 10 | 4.76 | 40 | 62 | 12 | 153 | 51 | 6.6 | A | 48 | M6 | T4 | 2894 | 6210 |
|
★
3205-4
|
32 | 5 | 3.18 | 50 | 80 | 12 | 92 | 65 | 9 | A | 62 | M6 | T4 | 1932 | 5705 |
|
★
3210-4
|
32 | 10 | 6.35 | 50 | 80 | 16 | 160 | 65 | 9 | A | 62 | M6 | T4 | 4765 | 10565 |
|
★
4005-4
|
40 | 5 | 3.18 | 63 | 93 | 15 | 96 | 78 | 9 | B | 70 | M8 | T4 | 2147 | 7250 |
|
4010-4
|
40 | 10 | 6.35 | 63 | 93 | 18 | 162 | 78 | 9 | B | 70 | M8 | T4 | 5331 | 13636 |
|
5010-4
|
50 | 10 | 6.35 | 75 | 110 | 16 | 162 | 93 | 11 | B | 85 | M8 | T4 | 5986 | 17502 |
|
6310-4
|
63 | 10 | 6.35 | 90 | 125 | 18 | 182 | 108 | 11 | B | 95 | M8 | T4 | 6727 | 22820 |
|
6320-3
|
63 | 20 | 9.53 | 95 | 135 | 20 | 253 | 115 | 14 | B | 100 | M8 | T3 | 8931 | 24831 |
|
8010-4
|
80 | 10 | 6.35 | 105 | 145 | 20 | 182 | 125 | 14 | B | 110 | M8 | T4 | 7519 | 29386 |
|
8020-3
|
80 | 20 | 9.53 | 125 | 165 | 25 | 253 | 145 | 14 | B | 130 | M8 | T3 | 10076 | 32217 |
