RSK

Features
Featuring a flangeless and miniature design under Ø16 mm, this series delivers an ultra-compact structure and a highly lightweight profile to effectively save space and enhance system integration flexibility.
It maintains stable precision and smooth transmission even within its micro-sized dimensions, making it the ideal choice for precision positioning and high-frequency motion applications.

1. Ultra-Small Outer Diameter for Maximum Space Utilization
   • Compact Footprint: With an outer diameter of ≤16 mm, the flangeless design further minimizes the overall envelope size.
   • Internal Integration: Perfectly suited for ultra-compact modules and the internal mechanisms of precision equipment.
   • High-Density Design: Highly advantageous for high-density, multi-axis configurations where space is severely restricted.
2. Lightweight Construction for Enhanced Dynamic Response
   • Mass Reduction: The combination of a miniature profile and flangeless structure drastically reduces the total weight.
   • High-Frequency Motion: Perfectly optimized for high-speed, short-stroke, and high-frequency motion applications.
   • Energy Efficiency: Significantly lowers system inertia, reducing motor stress and overall power consumption.
3. High-Precision Micro-Feeding Control
   • Premium Accuracy Grades: Meets stringent precision positioning requirements (supporting up to C3–C5 grades) despite its miniature scale.
   • Micro-Displacement: Highly engineered for micro-displacement control and ultra-fine precision adjustment mechanisms.
4. High Design Integration Flexibility

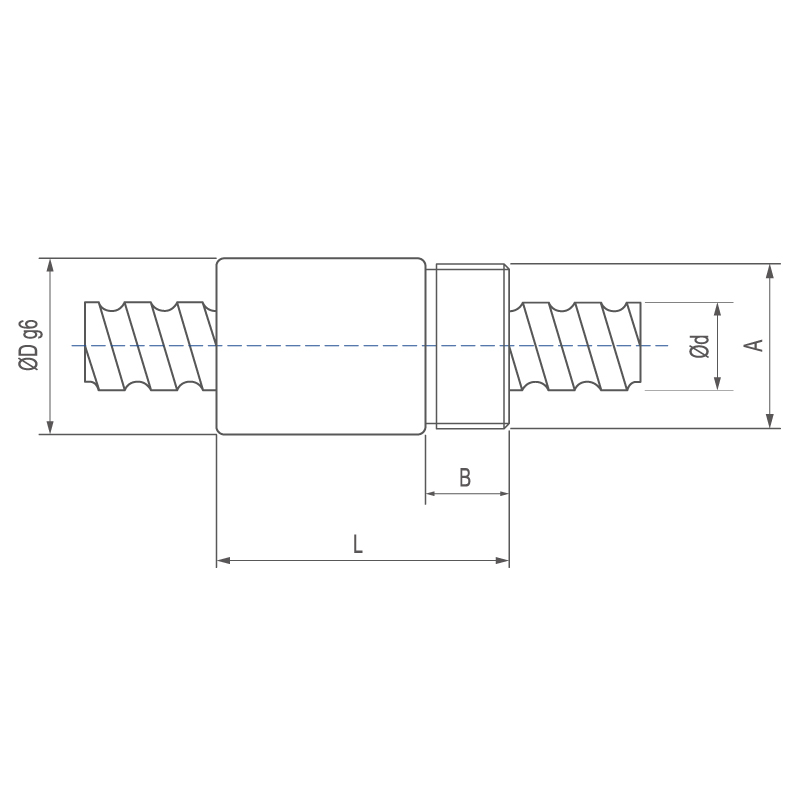

   • Direct Embedding: The flangeless structure allows the nut body to be seamlessly embedded directly into the machine housing or components.
5. Advanced Manufacturing & Assembly Standards
   • Strict Quality Control: GTEN leverages high-precision micro-machining and advanced assembly capabilities, strictly controlling concentricity and surface quality to ensure stable accuracy at a micro scale.
   • Extended Lifespan: Through sophisticated assembly techniques and optimized lubrication designs, GTEN effectively extends product lifespan and operational stability, demonstrating our premier manufacturing integration capabilities.

Diameter(mm): Ø08~ Ø16
Industries
Semiconductor Equipment, Medical Devices & Laboratory Automation, Optical & Inspection Systems, Compact Automation Modules & Desktop Equipment
