RSU

Features

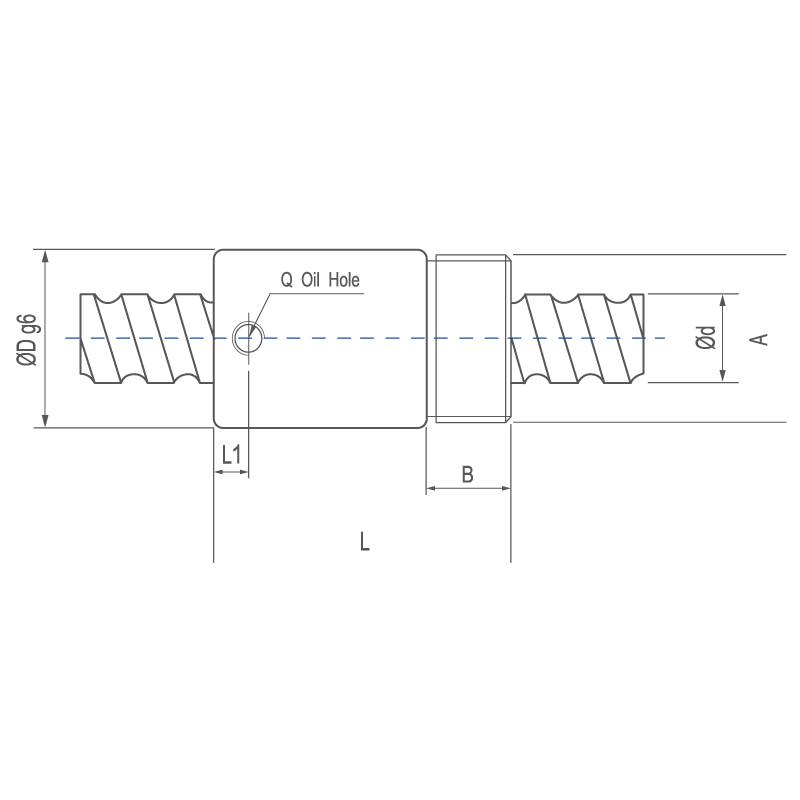

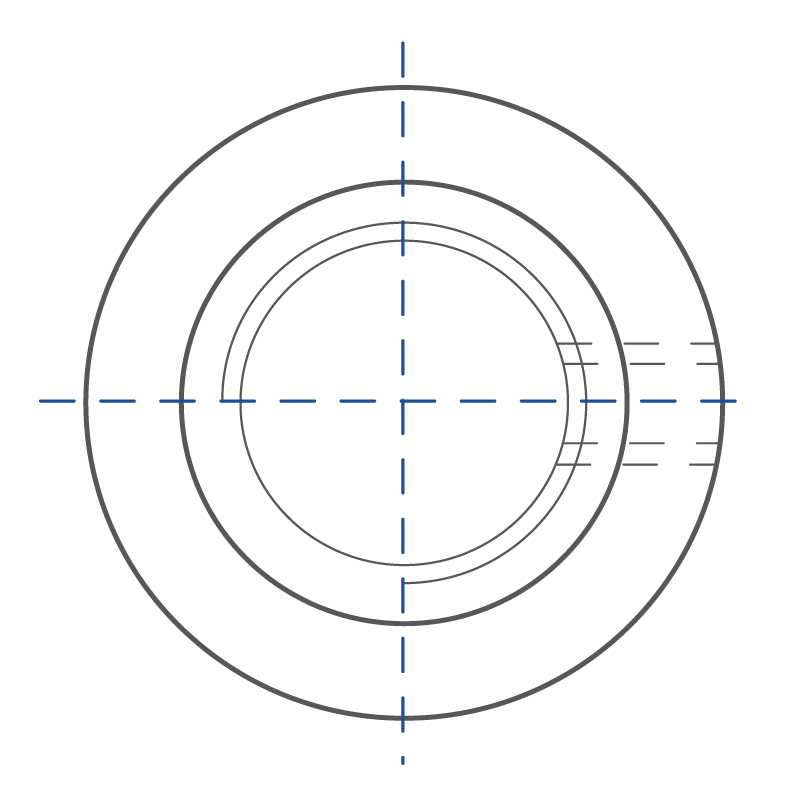

Featuring a flangeless configuration combined with an external male thread design on the nut body, this series can be screwed directly into the mechanism structure for secure fastening. This ultra-compact profile effectively minimizes the footprint and maximizes installation space savings.

1. Ultimate Space Optimization
   • Compact Footprint: The flangeless design eliminates any radial flange protrusion, keeping the outer diameter strictly close to the nut body itself.
   • Direct Threaded Mounting: Utilizing a threaded fastening method allows the nut to be engaged directly into the housing bore.
   • High-Density Layouts: Perfectly optimized for high-density configurations and confined-space linear modules.
2. Fast Installation & Precise Positioning
   • Threaded Fastening: Secured seamlessly via direct threaded insertion into the mating component.
   • Axial Referencing: Precise axial positioning can be achieved by utilizing the shoulder or end face of the nut as a locating reference.
   • Streamlined Assembly: Eliminates traditional flange alignment and multi-bolt fastening procedures, significantly saving assembly time.
3. High Structural Integration
   • Seamless Mechanism Integration: Can be integrated directly into the machine structure (e.g., machining internal threads directly within the linear stage body).
   • Component Reduction: Eliminates the need for additional mounting brackets, housings, or adapters.
   • Error Minimization: Helps effectively minimizes cumulative assembly tolerance errors.
4. Lightweight Construction for Peak Dynamic Performance
   • Inherent Mass Reduction: The flangeless structure inherently reduces total component weight.
   • High-Speed Responsiveness: Ideally suited for high-speed, miniaturized equipment to enhance system responsiveness and acceleration.
5. Enhanced Flexibility in Mechanical Design

Diameter(mm): Ø16~ Ø50
Industries
Precision Linear Stages, Semiconductor & Optical Equipment, Miniature Automation Modules, Highly Integrated Systems
